die in stock

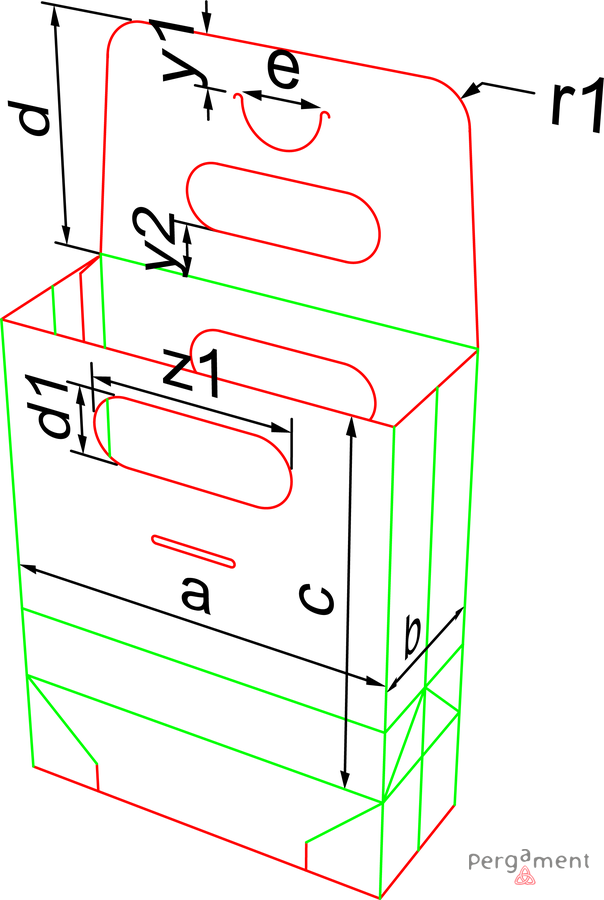

The cutting die for construction no. 221040 — paper bag 240×196×115 mm — is already made and kept at the Pergament printing house: a repeat run needs neither blank design nor tooling payment. Previous runs used GC1 board 200 g/m². Inner volume is about 5.4 L; the size suits gifts, clothing and medium-sized boxes. A run from 100 pcs is printed in 2–5 working days after artwork approval; a white plotter sample takes 30 minutes. A manager sends the dieline for your artwork and a quote by construction number.
Photos and illustrations
Dimensions and specifications
| Inner size | 240×196×115 mm (240x196x115) |
|---|---|
| Construction type | Bag |
| Volume | 5.4 L (5410 cm³) |
| Parts | single blank |
| Material used in practice | GC1 board 200 g/m² |
| Typical run | 1,000–3,000 pcs |
| Repeat orders | single order |
| Cutting die | in stock — no tooling cost, no waiting for a die |
| Minimum run and lead time | from 100 pcs, 2–5 working days |
| In the catalogue | since 2022 |
What it is for
A paper bag on an existing die solves the ‘branded packaging for tomorrow’s promo’ task: printing, die-cutting and gluing follow a proven scheme, so there are minimal operations from artwork to shipment. The 240×196×115 mm size (5.4 L) is a common format for boutiques, confectioneries, florists and beauty salons: it takes a shoe box, a cosmetics set or a few bottles. Handles — die-cut or rope with eyelets; the bottom is reinforced with an insert for heavy contents.

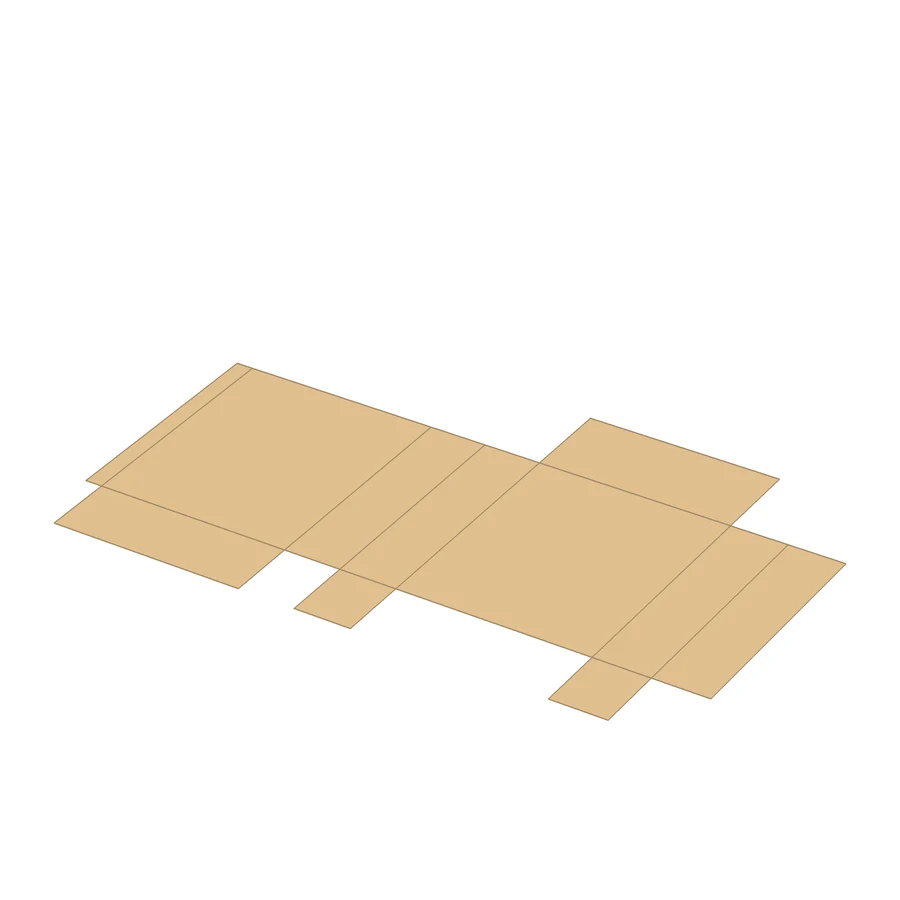

Bag no. 221040 is a large format — 240×196×115 mm, about 5.4 L — yet its board is light: GC1 200 g/m². That is a design decision, not a saving: the load is carried by the construction, not by wall thickness. The main blank of 638×401 mm forms the body, while separate bottom panels of 194×113 mm are glued inside and turn the base into a double-layer platform that takes the weight of the contents; the walls only have to hold their shape. The second condition is crease quality: on a light board every fold line must be crisp and perfectly aligned, otherwise the bag twists during assembly. On the existing die the creases were set long ago, so a repeat run needs no adjustment. The light board pays off in logistics too — a bundle of bags weighs little and takes less room in transport. We glue the body and fit the bottom in production and ship the bags folded flat; the die was made in 2022.
Industries where it is used: retail and fashion stores, confectioneries, wine boutiques, beauty salons, gift packaging.
Request the dieline and a quote from a manager
Email us
Call +373 79 044 417
Message on Telegram
Quote construction number 221040 · Construction no. 221040
We send the dieline of this construction on request. It is prepared for your artwork — with bleed, glue areas and for the chosen board — so we deliver it together with a quote: send the construction number, quantity and material, and a manager will reply within an hour during business hours. You get a ready solution with a price and lead time, not just a file.
Prototype in 30 minutes a white plotter sample of this construction — test your product before the run.
Variants and other sizes
Single-blank construction: one die, one die-cutting operation.
Other sizes of this type are collected in the section Paper bags.
Similar constructions
All constructions of this type and similar volume: Paper bags, 3–8 L, the whole catalogue.
Products made on this construction
Questions and answers
How do I get the dieline of construction no. 221040 for my artwork?
We hand over the dieline of construction no. 221040 together with a quote, not as a file from the site: bleed, glue areas and allowances are set in it for your run and board. An e-mail or message with number 221040, the quantity and the material is enough — a manager replies within an hour during business hours and sends the dieline for artwork and the price.
How much does a bag 240×196×115 mm cost at 300 and 1,000 pcs?
We price per operation for your artwork: board, printing, finishing, die-cutting and assembly. The die for construction no. 221040 already exists, so tooling is not in the estimate — a noticeable saving on small and medium runs. Send the quantity and material and a manager will return a quote for 2–3 run sizes.
What if I need a different size?
The 240×196×115 mm size is set by the die and does not change. If you need another one — either a neighbouring construction of the same type from the catalogue, or a new die (3–5 days to make and its cost in the estimate). Before deciding, order a white plotter sample: in 30 minutes you will see whether the product fits.
What board are such bags made of?
From practice on construction no. 221040 — GC1 board 200 g/m². For bags with handles the board stiffness and crease quality matter: on an existing die they are already proven, so the run repeats without trials.
Can the bag be printed in one colour or just with a logo?
Yes. The existing die does not depend on the design: printing can range from one colour to full colour with lamination. We quote for your chosen finish.
